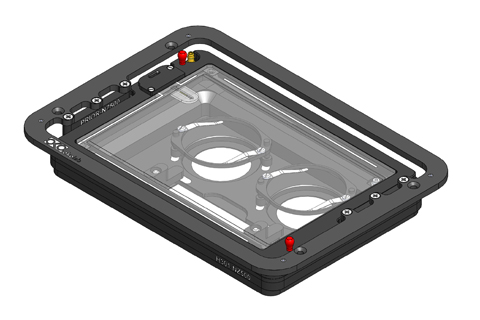

H301-PRIOR-NZ500

Stage compatibility: fits  on Prior NZ500 piezo Z-stages

The chamber can fit:
  • 35/60 mm Petri
  • 1x3 in. / 1x2 in. chambered slides
  • 6-12-24-48-96 MW plates
Features:
  • Uniformly heated by means of embedded electric resistances and is covered with a temperature controlled conductive glass lid
  • Magnets allow easy interchange chamber insert
  • Magnetic locks hold Petri, Slides in correct position inside the chamber
  • Perfusion holes: channels for 2.5 mm O.D. tubings are available in chamber riser
  • Removable riser to fit standard multiwell plates or to perform perfusion





Available Inserts

6MW-PRIOR-N500 6 well plates 6-MW.JPG
12MW-PRIOR-N500 12 well plates 12-MW.JPG
24MW-PRIOR-N500 24 well plates 24MW.JPG
24MW-NUNC-PRIOR-N500 24-well NUNC/GREINER plates 24MW-NUNC.JPG
48MW-PRIOR-N500 48-well plates 48MW.JPG
96MW-PRIOR-N500 96-well plates. 96MW.JPG
MW-OIL-N500 Open frame to image multi well plates with oil immersion objectives MW-OIL.JPG
1x35-PRIOR-N500 #1 35mm Petri-dish 1x35-M.JPG
1xGS-PRIOR-N500 #1 1x3in. chamberslide 1xGS-M.JPG
1xLABTEK-PRIOR-N500 #1 Lab-Tek 1x2 in. chambered cover glass 1xLABTEK-M.JPG
1xLABTEK-II-PRIOR-N500 #1 Lab-Tek II 1x2 in. chambered cover glass 1xLABTEK-II-M.JPG
1x60-PRIOR-N500 #1 60mm Petri-dish 1x60-M.JPG
1xT25-PRIOR-N500 #1 Nunc and Greiner T25 flask 1xT25-M.JPG
2x35-PRIOR-N500 #2 35mm Petri-dish 2x35-M.JPG
2xGS-PRIOR-N500 #2 1x3in. chamberslides 2xGS-M.JPG
2xLABTEK-PRIOR-N500 #2 Lab-Tek 1x2 in. chambered cover glass 2xLABTEK-M.JPG
2xLABTEK-II-PRIOR-N500 #2 Lab-Tek II 1x2 in. chambered cover glass 2xLABTEK-II-M.JPG
2x60-PRIOR-N500 #2 60mm Petri-dish 2x60-M.JPG
4x35-PRIOR-N500 #4 35mm Petri-dish 4x35-M.JPG
GS35-PRIOR-N500 #1 1x3in. chamberslide and #2 35mm Petri-dish GS35-M.JPG
LABTEK-35-PRIOR-N500 #1 Lab-Tek 1x2 in. chambered cover glass and #2 35mm Petri-dish LABTEK-35-M.JPG
LABTEK-II-35-PRIOR-N500 #1 Lab-Tek II 1x2 in. chambered cover glass and #2 35mm Petri-dish LABTEK-II-35-M.JPG
LABTEK-60-PRIOR-N500 #1 Lab-Tek 1x2 in. chambered cover glass and #1 60mm Petri-dish LABTEK-60-M.JPG
LABTEK-II-60-PRIOR-N500 #1 Lab-Tek II 1x2 in. chambered cover glass and #1 60mm Petri-dish LABTEK-II-60-M.JPG
GS60-PRIOR-N500 #1 1x3in. chamberslide and #1 60mm Petri-dish GS60-M.JPG
6035-PRIOR-N500 #1 60mm Petri-dish and #1 35mm Petri-dish 6035-M.JPG

Available LIDs

H301-KOEHLER LID Glass lid that reduces the height of the chamber and allows to work under Koehler illumination. Minimum condenser working distance (without chamber riser): 22mm H301-KOEHLER-LID.JPG
