ENCLOSURE - EXAMPLES ON 3i

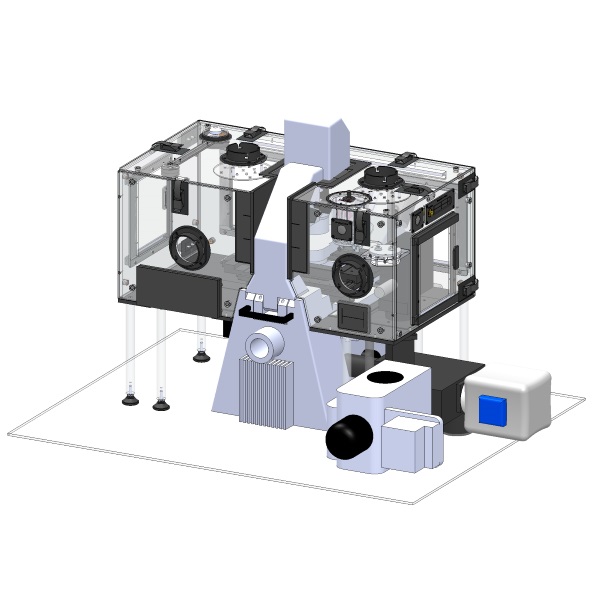

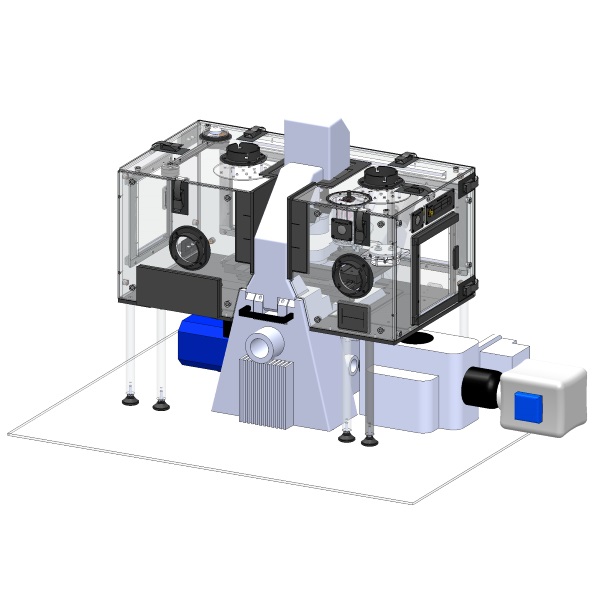

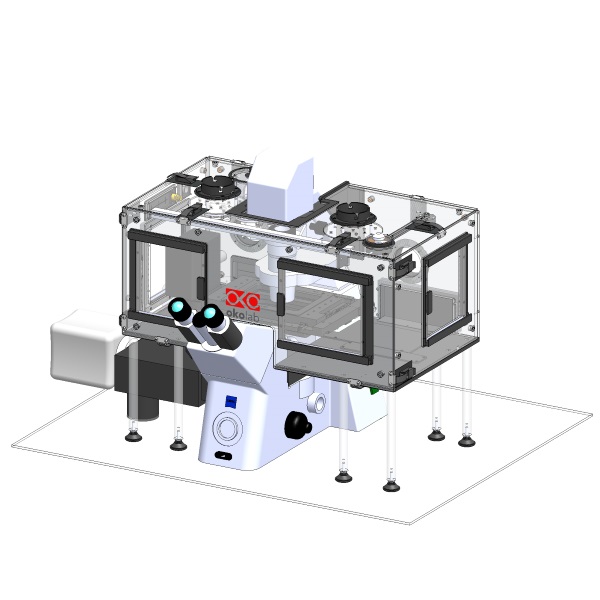

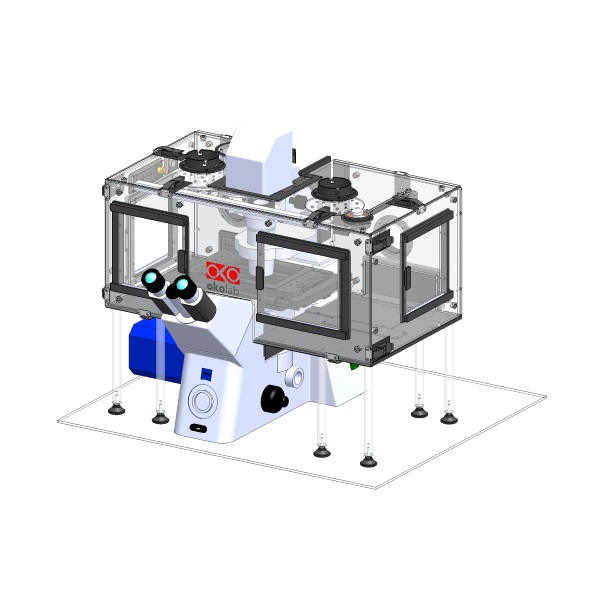

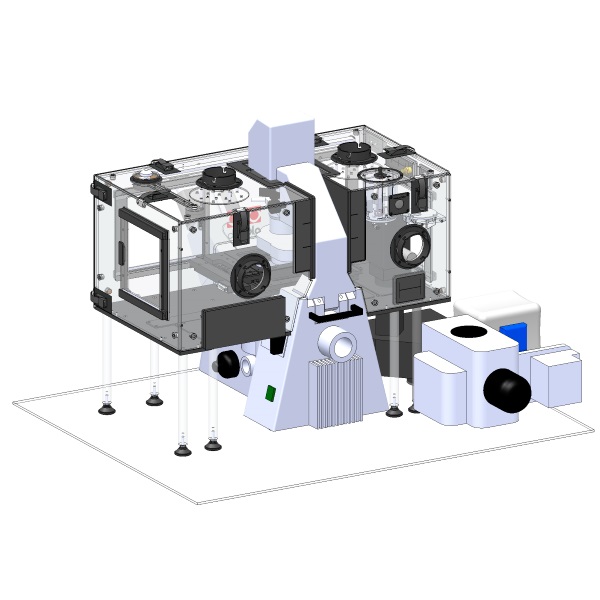

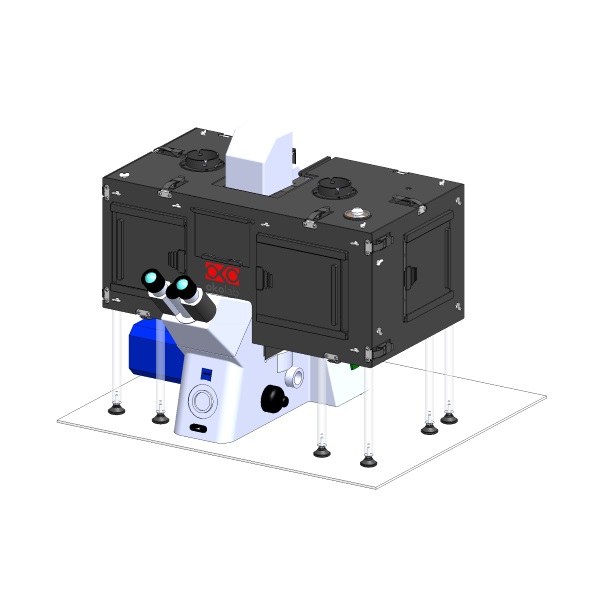

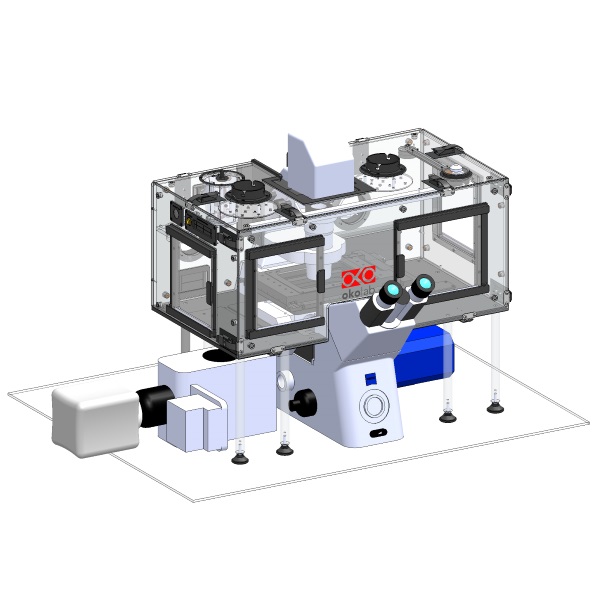

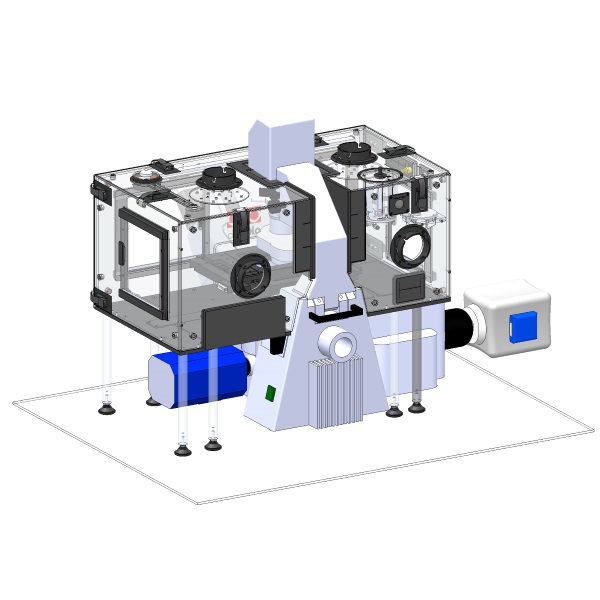

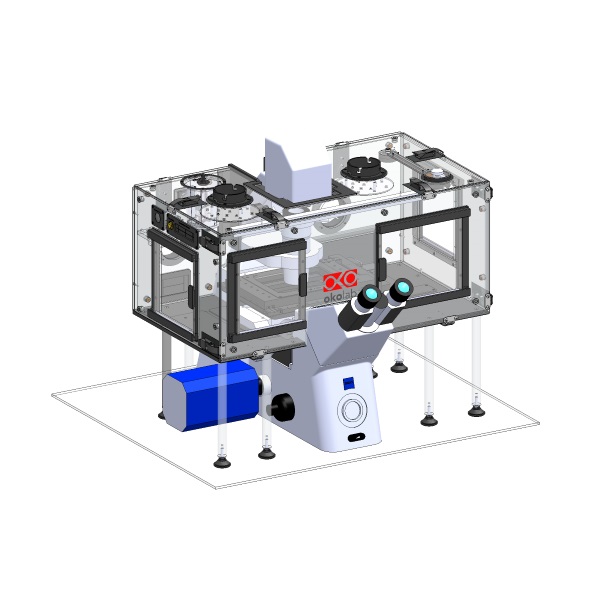

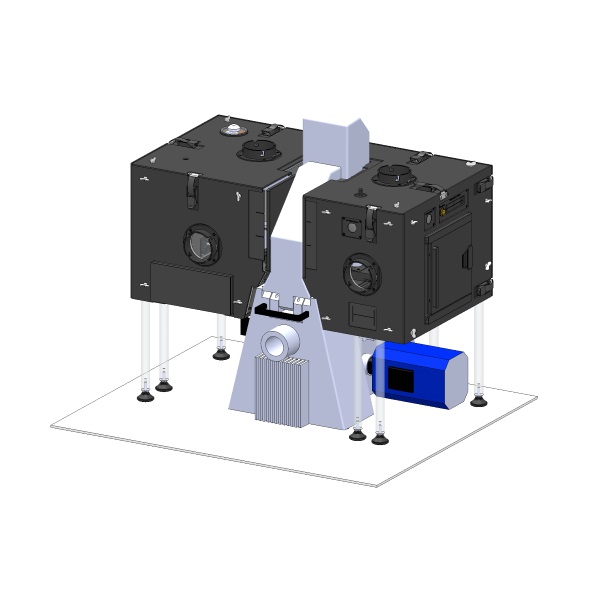

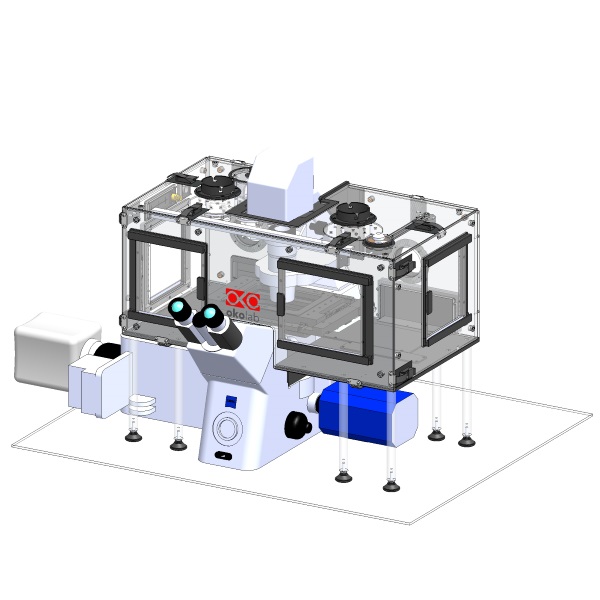

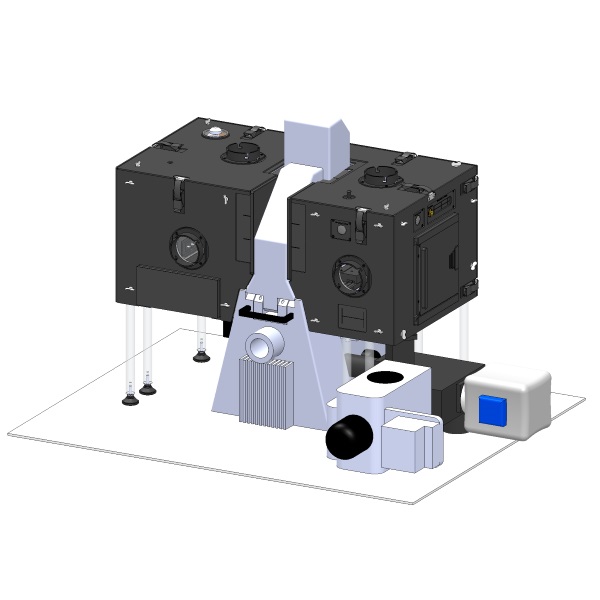

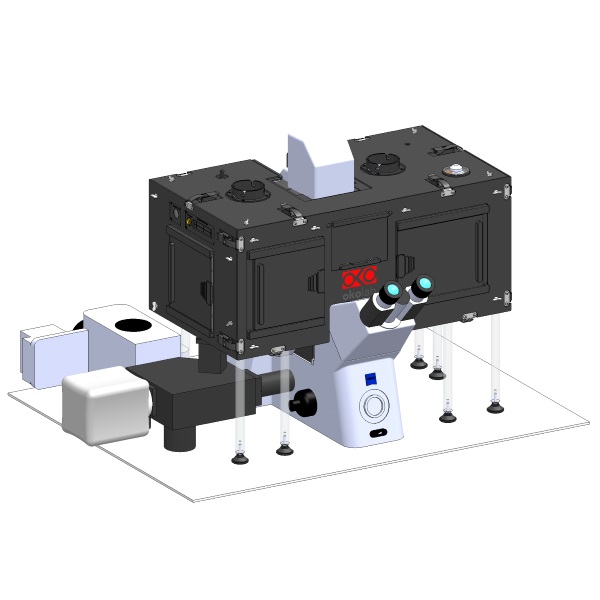

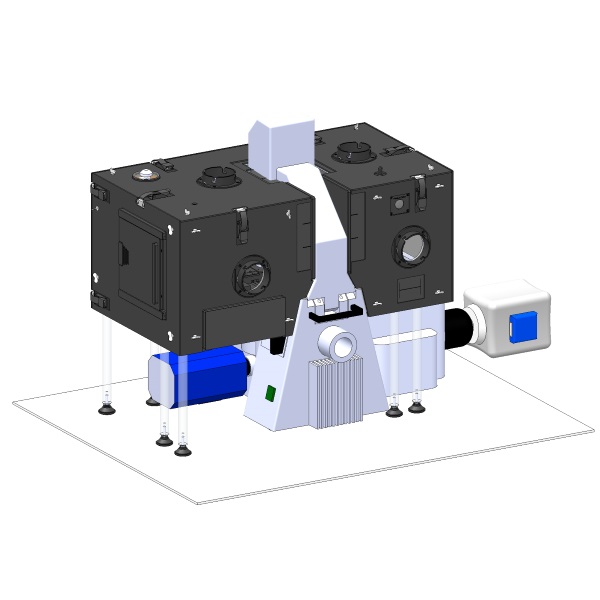

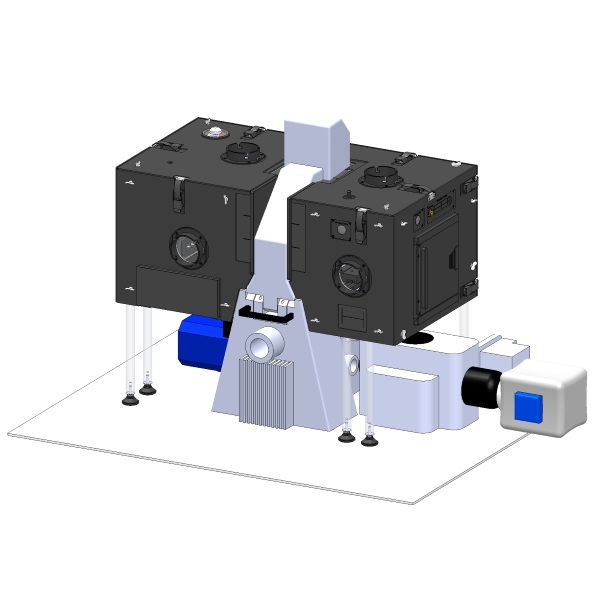

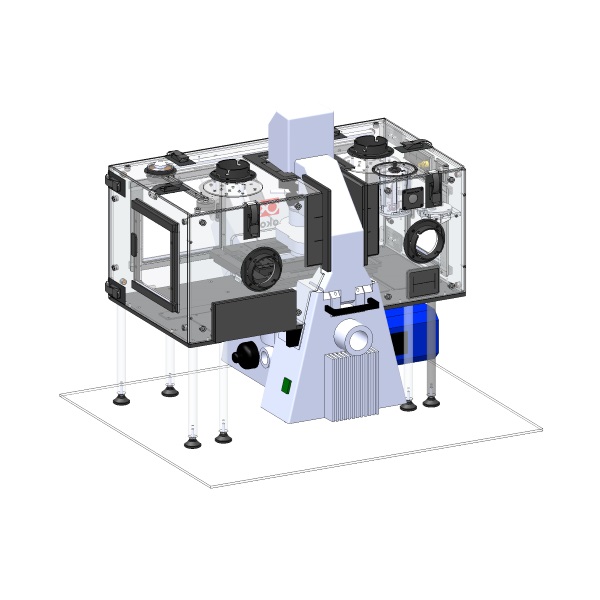

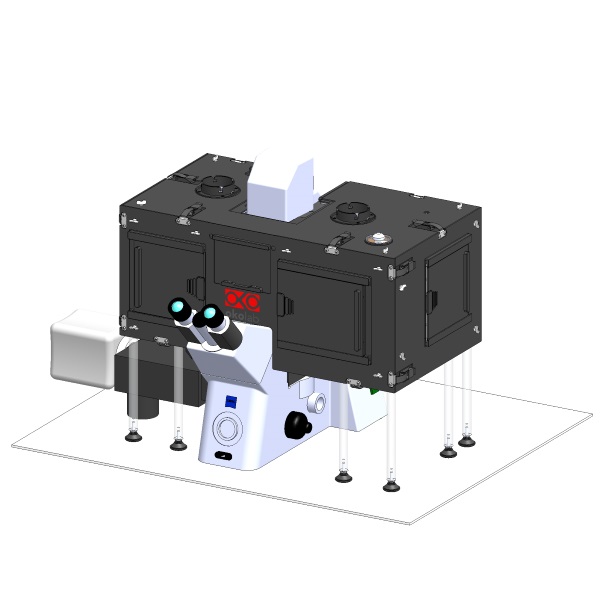

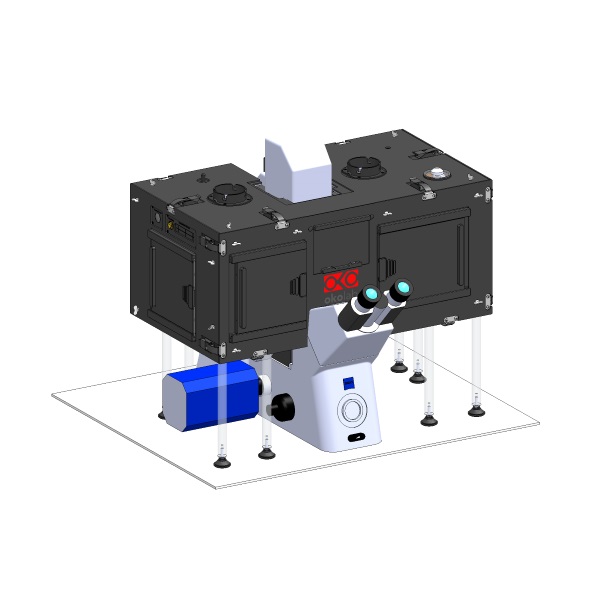

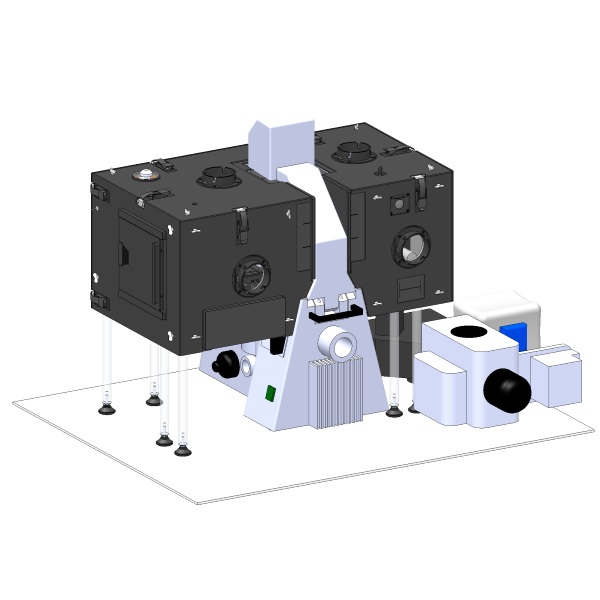

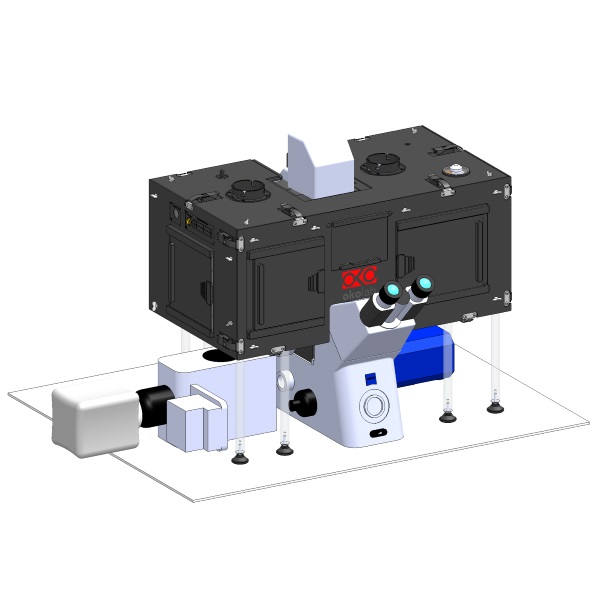

In this page we report drawings of the enclosure for three configurations, based on 3i platform.
| 3i-FLIM | Marianas | 3i-Spinning Disk Confocal | |
|---|---|---|---|
| Body | Zeiss Axio Observer Z1 | Zeiss Axio Observer Z1 | Zeiss Axio Observer Z1 |
| Eyepiece | Standard | Standard | Standard |
| XY-Stage | PZ-2000FT Series Automated Stage with PiezoZ Axis Top plate | PZ-2000FT Series Automated Stage with PiezoZ Axis Top plate | PZ-2000FT Series Automated Stage with PiezoZ Axis Top plate |
| Back Port | none | Tirf Module | none |
| Left Port | CoolSNAP HQ2 CCD | 3i mSwitcher PS4 with 3i Vector, Evolve EMCCD and Yokogawa CSU-X1 | Evolve EMCCD and Yokogawa CSU-X1 |
| Right Port | none | none | CoolSNAP HQ2 CCD |
| Nosepiece | Definite Focus | Definite Focus | Definite Focus |
